products
Home products

Laminating

Brand:Metal


Laminating

More safety to the surface


The laminating machines are designed to cover with a plastic film on a finished surface in order to protect it from dust, scratches and damages that can occur during handling and forming operations, therefore, our laminating machines are actually available in two flavors:

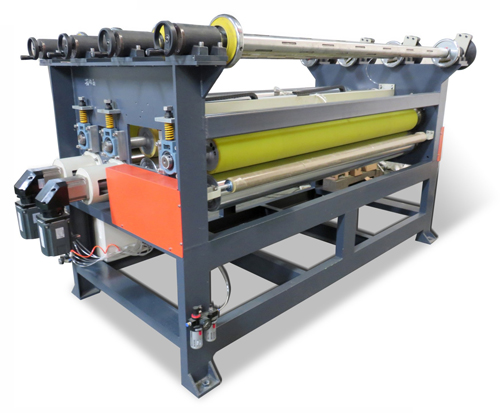

- JLTM semi-automatic laminating machine, user needs to cut the protective film manually, which is suitable for simple sheet-to-sheet lines and ideal for the highest efficiency coil-to-coil lines.

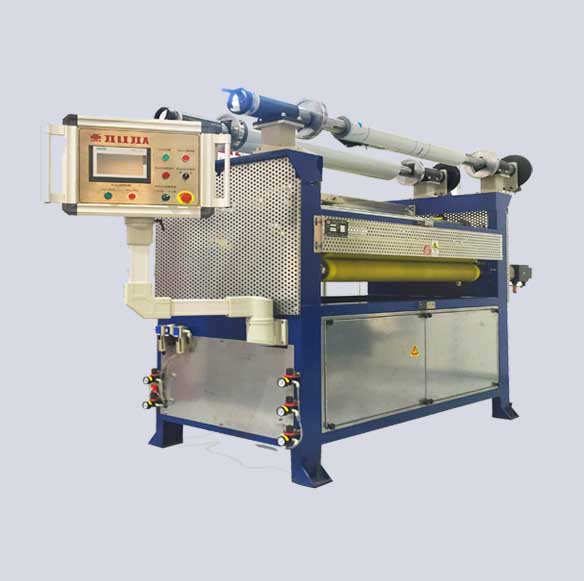

- AUTOTM automatic laminating machine, which compose the Ji Li Jia Automatic Blade?, This vertical-moving blade and an electronic positioning system to cut the PVC film between the two sheets, which can obtain a zero tolerance cutting effect. There has an integrated exhaust system (3,000m3/h) for film strip removal. This machine is especially useful in a fully automated sheet-to-sheet lines.



All JLTM /AUTOTM series laminating machines can be fully integrated with JDG /JSG or other series machine and also possible to install into an existing lines.



Details



Feature Detail

- Maximum 4 film holding reels are available (optional)

- Pneumatic expansion shafts film holding reels with safety clamp (optional)

- Long service life grease lubricated bearings

- Photoelectric switch automatic positioning

- Manual alignment correction of the film

- Integrated safety systems

- Automatic alignment of the film with the coil (only on JLTM coil version)

- By Using Ji Li Jia Automatic Blade? technology to achieve zero tolerance cutting (only on AUTOTM)

- Integrated exhaust system (3.000 0m3/h) for film strip removal (only on AUTOTM)

- PLC control and human-machine dialogue touch screen (only on AUTOTM)
